Photo of this unit coming soon Pearl Nano

About this unit

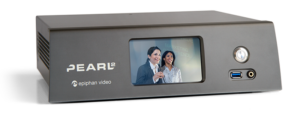

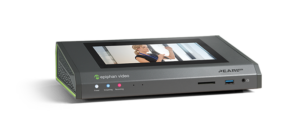

The Epiphan Pearl Nano is a compact single-channel hardware encoder for live production, taking 12G-SDI and 4K HDMI sources and streaming or recording them in H.264/H.265 at up to 4K30 or 1080p60. It offers dual XLR and RCA analog audio inputs, SRT/RTMP/RTSP/HLS output, SD card and internal M.2 SSD recording, and can be powered by PoE+ or its supplied adapter. At 2 lb and roughly 8 x 6 x 1.7 inches it is a practical second-hand option for remote contribution or small venue streaming; confirm the SD card, SSD and power adapter are included.

Camera/Video

Pearl Nano

Working Condition Available ITEM-095
$600.00

Plus 6% tax ($36.00) — $636.00 total. Shipping quoted separately.

Local pickup in Philadelphia, PA. Shipping is quoted per order based on size, weight and destination. We will email a shipping quote for your approval before any payment is due.
Condition
Working Condition
Category
Camera/Video
Item ref
ITEM-095
Manufacturer page
Specs & docs ↗

Full specifications

Manufacturer specifications for this model. Anything specific to this individual unit — wear, repairs, included accessories — is noted above.

Video Inputs (1) 12G SDI, (1) 4K HDMI; video over Ethernet: (1) RTSP, (1) SRT (push); input resolution 640x480 to 4K, up to 60 fps
Video Outputs (1) HDMI 2.0 out, (1) HDMI 2.0a pass-through, H.264/AVC over Ethernet, RTSP, SRT (push), HLS (push)
Encoded Channels One 4K channel at 30 fps with up to two 4K sources, or one 1080p channel at 60 fps with up to two 1080p sources
Codecs H.264/AVC and H.265/HEVC 4:2:0 8-bit; audio MP3, AAC, PCM
Bitrate Video 1 to 50 Mbps selectable; audio 64 to 320 kbps
Audio Inputs (2) XLR pro line level (+4.0 dBu, balanced/unbalanced), (1) RCA consumer line level (-10 dBV L/R); digital via SDI, HDMI, USB, RTSP, SRT; audio gain 0 to +30 dB
Recording AVI, MOV, MP4, MPEG-TS; up to 50 Mbps
Storage SD card up to 512GB (EXT4), internal SATA M.2 2280 SSD (M key), (1) USB 3.0 port
Network (1) RJ-45, 10/100/1000 Base-T; Epiphan Edge cloud management
Power External 12 VDC 2.5A / 30W adapter (SYS1588-3012) or PoE+ (802.3at, 25.5-30W)
Dimensions 206 x 150 x 43 mm (8.13 x 5.91 x 1.69 in)
Weight 0.907 kg (2.0 lb)
