Photo of this unit coming soon Atomos Ninja Recording Monitor

About this unit

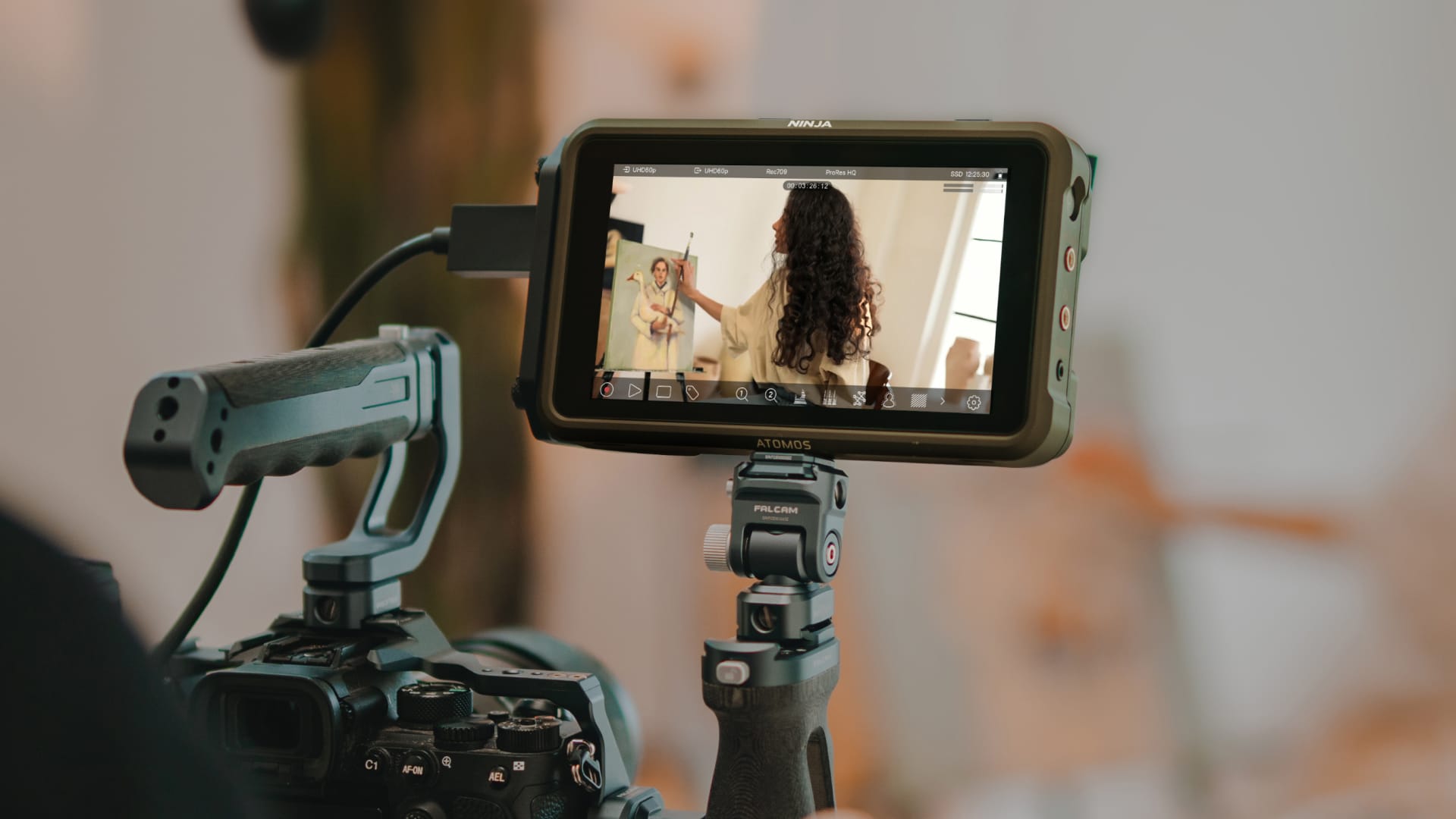

The Atomos Ninja (5.2-inch, AtomOS 11) is an on-camera monitor and recorder with a 1000-nit 10-bit HDR touchscreen that stays usable outdoors, plus HDMI 2.0 in and out for up to DCI 4K60. It records Apple ProRes, ProRes RAW (up to 6K30 from supported cameras), Avid DNx and H.265 to SSDs in a Master Caddy, and runs on a single NP-F/L-series battery or DC power. At 360 g in an aluminum body with 1/4-20 and 3/8 mounting top and bottom, it is a common, well-supported used field recorder for mirrorless and DSLR rigs.

Camera/Video

Atomos Ninja Recording Monitor

Atomos Ninja 5.2" 4K HDMI Recording Monitor

Working Condition Available ITEM-106
$176.70

Plus 6% tax ($10.60) — $187.30 total. Shipping quoted separately.

Local pickup in Philadelphia, PA. Shipping is quoted per order based on size, weight and destination. We will email a shipping quote for your approval before any payment is due.
Condition
Working Condition
Category
Camera/Video
Item ref
ITEM-106
Manufacturer page
Specs & docs ↗

Full specifications

Manufacturer specifications for this model. Anything specific to this individual unit — wear, repairs, included accessories — is noted above.

Product Code ATOMNJ004
Display 5.2-inch SuperAtom IPS capacitive touchscreen, 1920 x 1080, 423 PPI, 10-bit (8+2 FRC), edge-lit, 1000 nits, 16:9, Rec.709, 178 deg viewing angles
Calibration Atomos Calibrator with Calibrite ColorChecker Display Pro or Display Plus
Video Input 1x HDMI 2.0 up to DCI 4K60; ProRes RAW up to 6K30 from supported cameras; 3.5K RAW up to 60p with select cameras; SDI optional via Atomos Connect module
Video Output 1x HDMI 2.0 up to 4K60, 10-bit, 4:2:2
Recording Codecs Apple ProRes, ProRes RAW, Avid DNx, H.265 (HEVC)
Media AtomX SSDmini / SATA drives via Master Caddy II/III
Audio 24-bit / 48 kHz PCM; HDMI 8-channel embedded; 3.5mm analog in and headphone out
OS AtomOS 11
Power 6.2-16.8V input, 10-22W operating; 1x NP-F / L-series battery (not included); DC via locking jack on battery eliminator; approx. 2 hr on 5200 mAh, 3 hr on 7800 mAh
Mounting 1/4-20 or 3/8 anti-rotation points, top and bottom
Dimensions 151 x 91.5 x 31 mm (5.95 x 3.6 x 1.2 in)
Weight 360 g (12.7 oz)
Construction Aluminium alloy chassis with ABS polycarbonate rear enclosure; actively controlled fan
Operating Temperature Up to 40 C
